Features

General

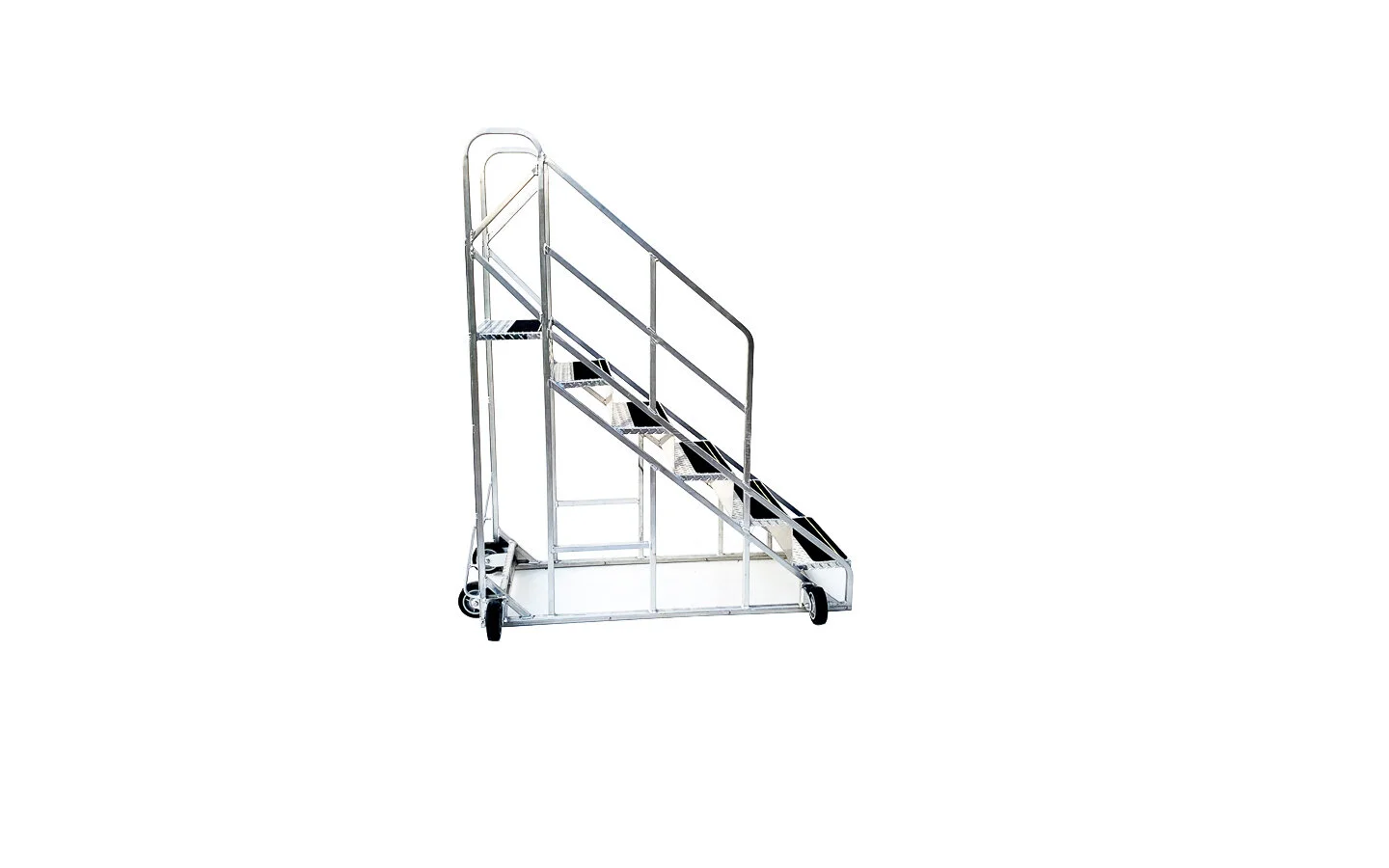

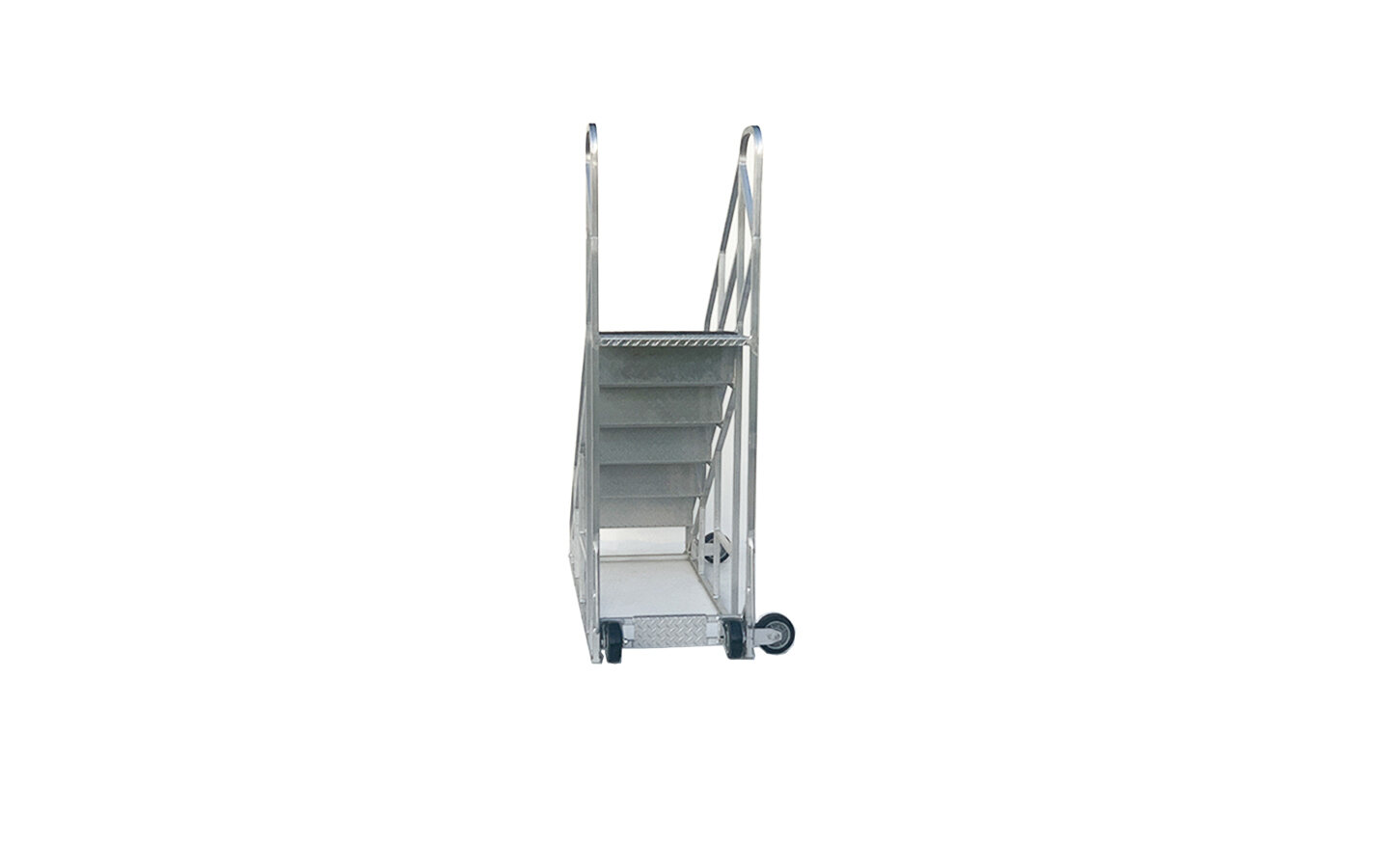

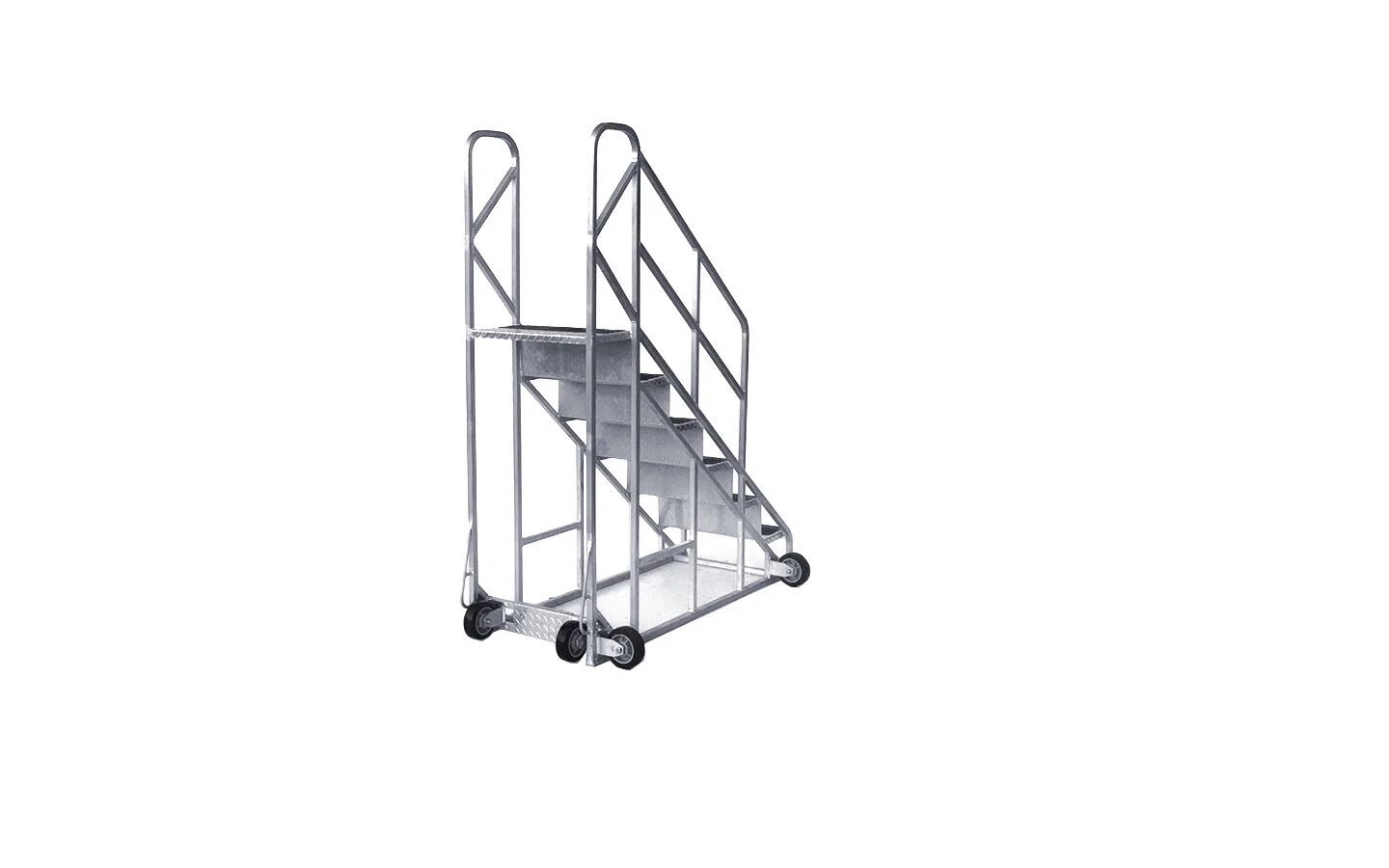

  • Heavy Duty Mobile Platform Ladder

  • Free-Standing Unit

  • 100% Aluminum

  • Rubber Wheels

  • Stability and Load Testing Conducted

  • ANSI A14-7 Compliant



  • Rated for 350lbs.

  • Top step is same height as tractor trailer bed

  • 2 handholds on platform level

  • Full hand rail on left side

  • Right side open to allow for inspection at any level

  • Anti-slip thread guard



Unique Wheel Assembly

  • Wheels mounted on side and back for maneuverability

  • Safety Feature: Wheels do not engage unless tilted for positioning

For Frontline Officers and K-9

  • Increases safety

  • Expedites inspection process

  • Helps align high-tech equipment with the human element

  • Increases number of quality and informed referrals

  • Facilitates intense inspections of anomalies in high target areas

  • Helps prevent fatigue and possible injury

For Physical Inspections

  • Applies the “human element” (training, experience, and prior intelligence) to the inspection of cargo and conveyances

  • Utilizes hand-held technology in elevated target areas

man13 copy.png

For interior trailer Inspections

For closer scrutiny of:

  • Ceiling

  • Walls

  • Refrigerated Unit

For Non-Intrusive Inspections

  • Radiation Portal Monitors

  • Vehicle and Cargo Inspection System (VACIS)

  • Gantry (X-ray Inspection)

positioning

Forward Deployment

Using Rear Hand Rails and Rear Kick Plate

  • Position yourself by standing behind the Portable Dock, grab the vertical Rear Hand Rails of ladder (at chest height) and position your foot on Rear Kick Plate.

  • Then, simultaneously push the Portable Dock away from you using the Rear Kick Plate while tilting the Rear Hand Rails down towards you.

The Portable Dock can then be rolled forward to desired inspection area.

Side Deployment

Using Side Hand Rails and Side Kick Bar

  • Position yourself by standing on the side of the Portable Dock and getting a firm grip on the Side Hand Rails (at chest height), position your foot on the Side Kick Bar.

  • Then, simultaneously push the Portable Dock away from you using the Side Kick Bar while tilting the Side Hand Rails down towards you.

The Portable Dock can then be rolled sideways to desired inspection area.

Inside Tractor Trailer

Using the two methods mentioned for maneuvering the ladder, place Portable Dock at rear of open tractor trailer.

  • Climb inside the trailer. Once inside, grab the Top of the Hand Rail and tilt and pull the ladder towards you, while the second officer at ground level grabs the bottom of ladder (where metal curves below bottom step) and helps to boost the ladder inside the trailer.

  • The ladder can then be easily pulled inside trailer. The back of the ladder is reinforced to serve as a skid to help slide the Portable Dock in the trailer.
